2 1/16" Coiled Tubing Hanger 5M Pressure Rated
Coiled Tubing Hanger
Also known as:
Coiled Tubing Wellhead Hanger, CT, CT Hanger
2 1/16" Coiled Tubing Hanger 5M Pressure Rated
Coiled Tubing Hanger
Also known as:
Coiled Tubing Wellhead Hanger, CT, CT HangerBuy
Made to Order
Manufacturer
Price:
Request for QuoteShipping:
Air freightDelivery Time:
4 - 6 WeeksNote:
2 1/16” 5M Coiled Tubing Hanger – Compact, High-Pressure Support for Light to Medium Duty Coiled Tubing OperationsSign in
Welcome back
Sign up
Sign-up and make easy contact all providers in the industry.
Let's create your free account
Executive Summary
The 2 1/16” 5M Coiled Tubing Hanger is designed to provide reliable support for smaller coiled tubing tool strings in high-pressure well environments.
At its core, the hanger features a rugged body construction and is suitable for tubing sizes up to 3 1/2” O.D., ensuring safe and stable operation during demanding downhole interventions.
With options for API 6B and 6BX flanged connections, flanged side outlets, and a wireline entry sub to guide tools and seal the annulus, the hanger supports efficient, secure deployment and retrieval of coiled tubing tools, helping operators maintain well integrity and operational efficiency in compact wellbores.
Technical Specifications
| Size | 2 1/16” |
| Pressure Rating | 5M (5,000 psi) |
| Flanged Connections | API 6B & API 6BX |
| Supported Tubing Sizes | 1”, 1¼”, 1½”, 1¾” O.D. coiled tubing |
| Seal Type | Secondary annulus seal provided by wireline entry sub |
| Material | High-strength alloy steel |
| Standards Compliance | API |
| Power Source | Electric |
| Frequency | 50 to 60 Hz |
| Feature | Designed to support heavy duty coiled tubing down hole tool strings. |
Features and Benefits
- Rated for moderate to high-pressure well conditions.
- Compatible with a wide range of coiled tubing sizes.
- Rugged hanger body for safe working during high well pressures.
- Designed to support heavy duty coil tubing down hole tool string.
- Secondary annulus seal improves safety and tubing stability during operations.
Print or Share
Do you need information for the team or a client? Download these page to add your dossier.
Send an email with the link to this page. It's a great way to share information.
Detailed Description

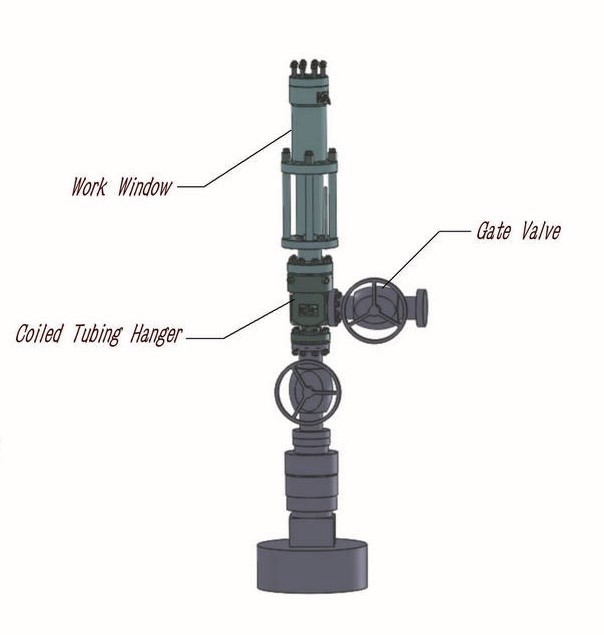

The 2 1/16” 5M Coiled Tubing Hanger is designed to support coiled tubing strings in well intervention and completion work. With a 5,000 psi pressure rating, it’s well-suited for moderate to high-pressure wells, and its compact 2 1/16” size makes it ideal for smaller wellheads or space-constrained setups.
It handles tubing sizes up to 3 1/2” O.D. and is commonly used for cleanouts, stimulation, logging, and other coiled tubing operations. A built-in wireline entry sub helps guide tools into the tubing while providing an extra seal and preventing tubing movement—improving well control and operational safety.
The hanger is available with API 6B or 6BX flange connections and can include a side outlet if needed. It’s a reliable, field-proven choice for operations requiring strong support and safe access to coiled tubing tools.
